100023788 | Telegärtner

TNC socket 50 Ω, KX-21A, RG-178B/U, RG-196A/U, straight, 100023788

Order No.: 77F844
EAN: 4018359108762
MPN:
100023788
J01011A2336
Series: TNC

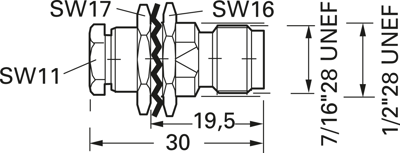

100023788 Telegärtner Coaxial Connectors Image 1

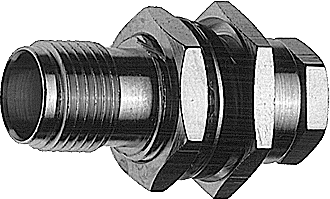

100023788 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.2340 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
10.23 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2340 €
10 pcs.
9.4962 €
25 pcs.
8.8655 €
50 pcs.
8.0563 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01011A2336, Telegärtner

TNC Bulkhead Jack G3 (RG-178B/U), IP 67

This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.

Technical Data

  • Design: Jack
  • Connector type: TNC
  • Cable group: RG 178B/U
  • Connection type: other
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector TNC
Cable Group KX-21A, RG-178B/U, RG-196A/U
Design straight
Contact material beryllium copper
Contact connection other
Version socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
