100023776 | Telegärtner

TNC panel socket 50 Ω, KX-21A, RG-178B/U, RG-196A/U, crimp/crimp, straight, 100023776

Order No.: 80F1239
EAN: 4099889831917
MPN:
100023776
J01011A0066
Series: TNC

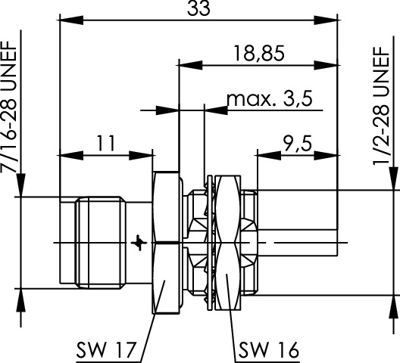

100023776 Telegärtner Coaxial Connectors Image 1
100023776 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.3054 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.31 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3054 €
10 pcs.
9.5676 €
25 pcs.
8.9369 €
50 pcs.
8.1277 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01011A0066, Telegärtner

TNC Bulkhead jack crimp G3 (RG-178B/U) crimp/crimp, front mounting

This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.

Technical Data

  • Design: Jack
  • Connector type: TNC
  • Cable group: RG 178B/U
  • Connection type: Crimp/Crimp
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector TNC
Cable Group KX-21A, RG-178B/U, RG-196A/U
Design straight
Contact material brass
Contact connection crimp/crimp
Version panel socket
Logistics
Property Value
Customs tariff number 85366910
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
