100023736 | Telegärtner

TNC plug 50 Ω, RG-174/U, RG-188A/U, RG-316/U, crimp connection, straight, 100023736

Order No.: 77F818
EAN: 4018359190170
MPN:
100023736
J01010B0007
Series: TNC
Telegärtner

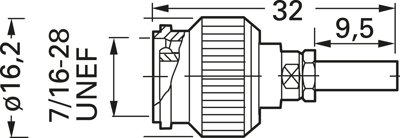

100023736 Telegärtner Coaxial Connectors Image 1

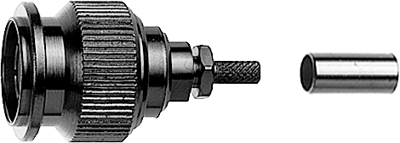

100023736 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.2348 € *
Available: 45 pcs.
Leadtime: 1 Week **
Total Price:
8.23 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2348 €
10 pcs.
7.2471 €
100 pcs.
6.3427 €
250 pcs.
6.1047 €
1000 pcs.
5.7239 €
*incl. VAT plus shipping costs
**Subject to prior sale

Coaxial connector, J01010B0007, Telegärtner

TNC Straight Plug Crimp G7 (RG-316/U), crimp/crimp

This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.

Technical Data

  • Design: Plug
  • Connector type: TNC
  • Cable group: RG 316/U
  • Connection type: Crimp/Crimp
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Version plug
Design straight
Impedance 50 Ω
Cable Group RG-174/U, RG-188A/U, RG-316/U
Contact connection crimp connection
Contact material brass
Connector TNC
Logistics
Country of origin DE
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
