100023706 | Telegärtner

TNC plug 50 Ω, RG-174/U, RG-188A/U, RG-316/U, crimp connection, straight, 100023706

Order No.: 77F8223
EAN: 4018359190156
MPN:
100023706
J01010A0039
Series: TNC

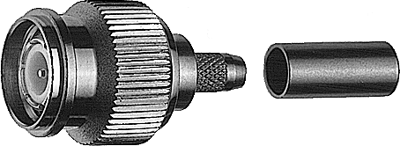

100023706 Telegärtner Coaxial Connectors Image 1

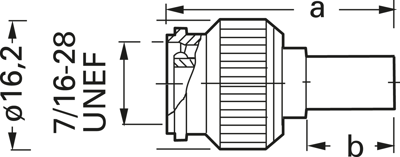

100023706 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.8187 € *
Available: 10 pcs.
Total Price:
6.82 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8187 €
10 pcs.
6.3308 €
25 pcs.
5.9143 €
50 pcs.
5.3788 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial connector, J01010A0039, Telegärtner

TNC Straight Plug Crimp G7 (RG-316/U) crimp/crimp

This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.

Technical Data

  • Design: Plug
  • Connector type: TNC
  • Cable group: RG 316/U
  • Connection type: Crimp/Crimp
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector TNC
Cable Group RG-174/U, RG-188A/U, RG-316/U
Design straight
Contact material brass
Contact connection crimp connection
Version plug
Logistics
Property Value
Customs tariff number 85366910
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
