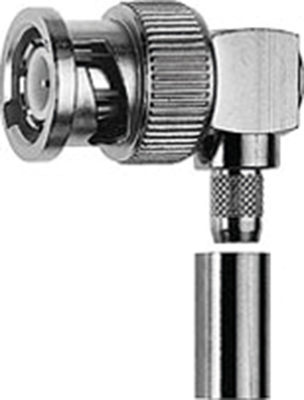

Name: BNC plug 50 Ω, RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A, solder/crimp connection, angled, 100023304
Brand: Telegärtner
SKU: 78F2165
Price: 8.93 EUR
Availability: InStock

BNC plug 50 Ω, RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A, solder/crimp connection, angled, 100023304

Order No.: 78F2165

Manufacturer: Telegärtner

Manufacturer SKU
100023304
J01000A0010

Manufacturer series: BNC

EAN: 4018359101411

about the green icons

Active

Total price

( 8.9250 € * / pcs.)

8.93 €

Available: 271 pcs.

Quantity

Price per unit*

1 pcs.

8.9250 €

10 pcs.

8.0444 €

50 pcs.

7.0686 €

100 pcs.

6.0095 €

*incl. VAT plus shipping costs

Show 13 variants

Please send price/quantity requests to info@buerklin.com

Description

Product by Telegärtner at Bürklin Elektronik

Coaxial connector, J01000A0010, Telegärtner

BNC Angle Plug Crimp G7 (RG-316/U), solder/crimp

Technical Data

Design: Plug
Connector type: BNC
Cable group: RG 316/U
Connection type: Solder/Crimp
Angled connector: true
Insulated mounting: false
Impedance: 50 Ω

Technical specifications

	Version	plug
	Design	angled
	Impedance	50 Ω
	Cable Group	RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A
	Contact connection	solder/crimp connection
	Contact material	brass
	Connector	BNC
