100024112 | Telegärtner

Coaxial adapter, 50 Ω, N plug to N socket, straight, 100024112

Order No.: 78F2930
EAN: 4099889850031
MPN:
100024112
J01024A0009
Series: COAX
Telegärtner

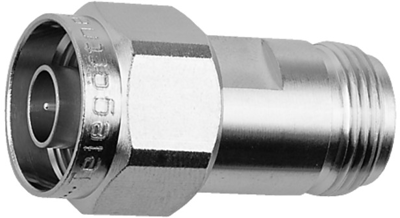

default L

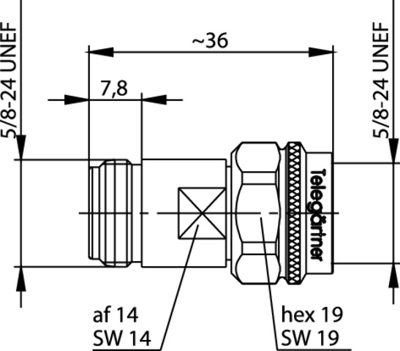

front L
Image may differ
Unit Price (€ / pc.)
22.7885 € *
Available: 8 pcs.
Leadtime: 2 Weeks **
Total Price:
22.79 € *
Price list
Quantity
Price per unit*
1 pcs.
22.7885 €
10 pcs.
20.0634 €
50 pcs.
18.6830 €
150 pcs.
17.8738 €
500 pcs.
16.9456 €
*incl. VAT plus shipping costs
**Subject to prior sale

Coaxial adapter, J01024A0009, Telegärtner

N-Plug to N-Jack

The N series is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. Only 50 Ω impedances are available. Connector styles are available for flexible, conformable, semi-rigid and corrugated cable types. Both crimp and clamp cable termination processes are used for this series. Special design techniques for this series of connectors have resulted in excellent levels of performance with regard go return loss (VSWR) and intermodulation distortion. Applications for these connectors vary from signal and data transmission where vibration resistance and environmental protection is required. N series provides a medium-power high-frequency solution for coax connections.

FEATURES

  • N (m)/N (f)
  • Max. Frequency 11 GHz

Technical Data

  • Design: straight
  • Impedance: 50 Ω
Technical specifications
Design straight
Impedance 50 Ω
Connector (exit) N socket
Connector N plug
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Variations
Connector (exit)
Design
Connector
Impedance
1 item in 4 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Connector (exit)
Design
Connector
Impedance
Coaxial adapter, 50 Ω, N plug to N socket, straight, 100024112
Order No.:
 78F2930
Manufacturer:
 Telegärtner
Manufacturer SKU:
 100024112
Available: 8 pcs. Leadtime: 2 Weeks **
Total Price: 22.79 € *
1 pcs.
22.7885 €
10 pcs.
20.0634 €
50 pcs.
18.6830 €
150 pcs.
17.8738 €
500 pcs.
16.9456 €
N socket
straight
N plug
50 Ω
