Electrolytic capacitor, 220 µF, 35 V (DC), ±20 %, SMD, Ø 10 mm, VEV227M035S0ANH03K
Unit Price (€ / pc.)
0.6664 € *
Standard delivery time from the manufacturer is: 30 Weeks

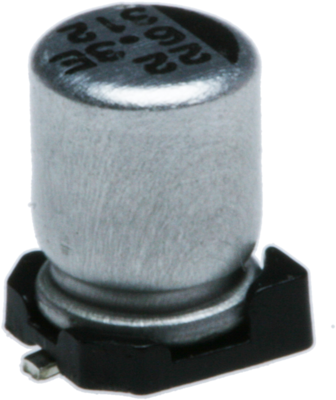

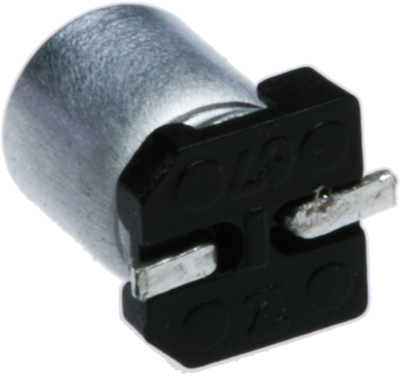

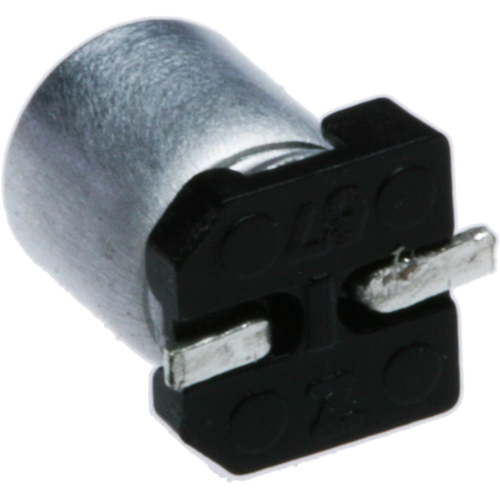

SMD aluminum electrolytic capacitor, type Teapo EV.
For surface mounting. Very low impedance
Rated voltage 35 VDC, type EV.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 220 µF | |

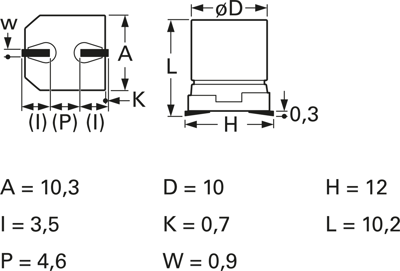

| diameter | 10 mm | |
| max. operating temperature | 105 °C | |
| Length | 10.2 mm | |
| min. operating temperature | -55 °C | |
| Ripple current | 600 mA | |
| Design | SMD | |
| Version | polar | |
| Rated voltage (DC) | 35 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
