6-2176331-0 | TE Connectivity

Resistor, thick film, SMD 6330, 820 kΩ, 2 W, ±1 %, 6-2176331-0

Order No.: 72P0489
EAN: 4099891689261
MPN:
6-2176331-0
Series: CRGP
TE Connectivity

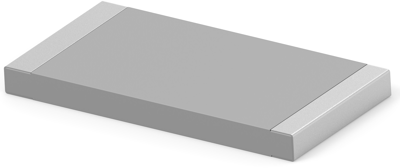

default L
front L

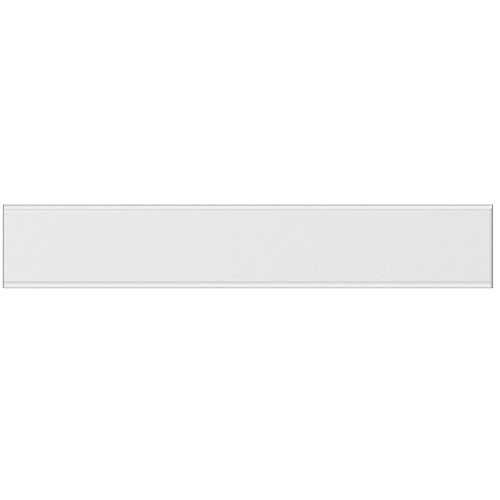

side L
back L

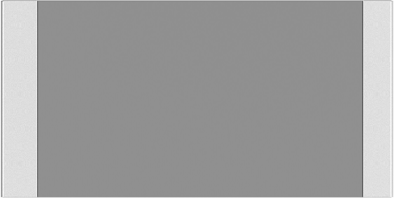

top L
Image may differ
Unit Price (€ / pc.)
0.2106 € *
Available: 0 pcs.
Available in 5 Days: 4,000 pcs.
Leadtime: 1 Week **
Total Price:
0.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4000 pcs.
0.2106 €

Chip resistor, 6-2176331-0, TE Connectivity

The 6-2176331-0 is a thick film chip resistor, suitable for auto placement in volume and for most applications. Also suitable for both wave and reflow soldering techniques.

Features

  • Small size and light weight
  • Pulse Rated
  • Terminal finish matte Sn over Ni
Technical specifications
ohmic resistance 820 kΩ
Design SMD 6330
Height 0.55 mm
Length 6.35 mm
Power 2 W
max. operating temperature 155 °C
min. operating temperature -55 °C
Tolerance ±1 %
Technology thick film
Temperature coefficient ±100 ppm/°K
Logistics
Country of origin TH
Customs tariff number 85332100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
