2-2176331-3 | TE Connectivity

Resistor, thick film, SMD 6330, 680 Ω, 2 W, ±1 %, 2-2176331-3

Order No.: 71P5803
EAN: 4099891685966
MPN:
2-2176331-3
Series: CRGP
TE Connectivity

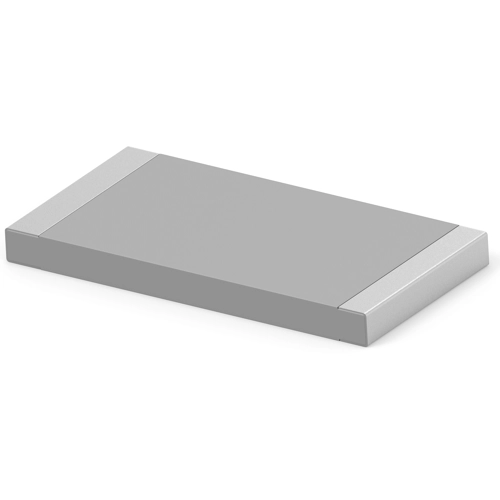

default L
front L

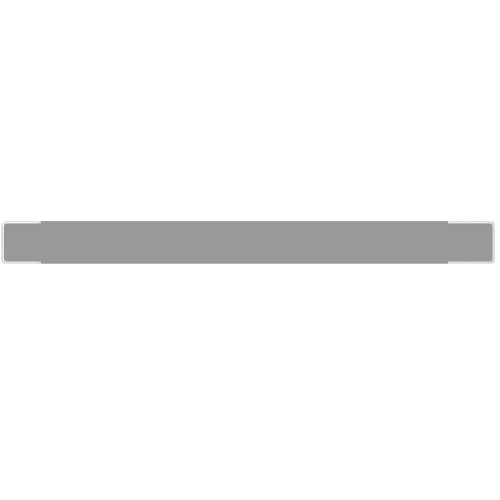

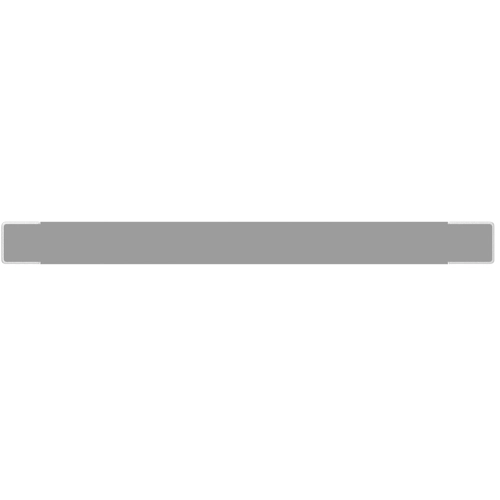

side L

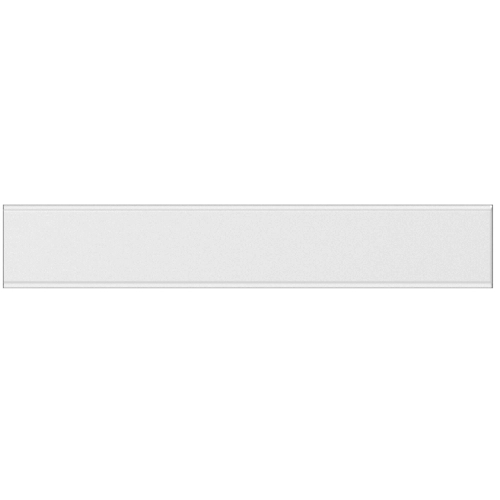

back L

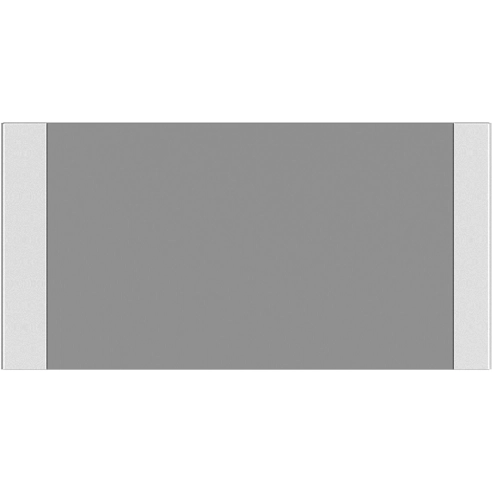

top L
Image may differ
Unit Price (€ / pc.)
0.2106 € *
Available: 0 pcs.
Available in 5 Days: 5,000 pcs.
Leadtime: 1 Week **
Total Price:
0.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4000 pcs.
0.2106 €

Chip resistor, 2-2176331-3, TE Connectivity

The 2-2176331-3 is a thick film chip resistor, suitable for auto placement in volume and for most applications. Also suitable for both wave and reflow soldering techniques.

Features

  • Small size and light weight
  • Pulse Rated
  • Terminal finish matte Sn over Ni
Technical specifications
ohmic resistance 680 Ω
Design SMD 6330
Height 0.55 mm
Length 6.35 mm
Power 2 W
max. operating temperature 155 °C
min. operating temperature -55 °C
Tolerance ±1 %
Technology thick film
Temperature coefficient ±100 ppm/°K
Logistics
Country of origin TH
Customs tariff number 85332100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item in 5 variations
