4-2176398-2 | TE Connectivity
Resistor, thick film, SMD 5025, 680 kΩ, 2 W, ±1 %, 4-2176398-2
Unit Price (€ / pc.)
0.357 € *
Available: 0 pcs.
Available in 5 Days: 2,000 pcs.
Leadtime: 1 Week **

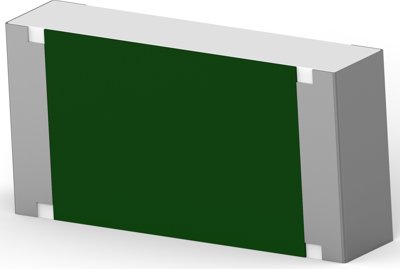

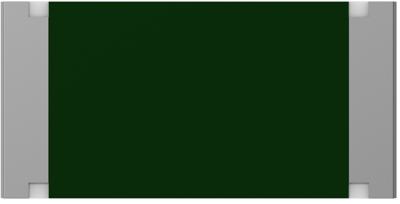

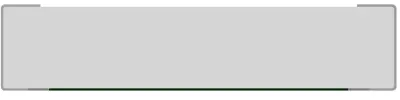

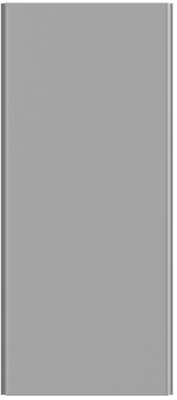

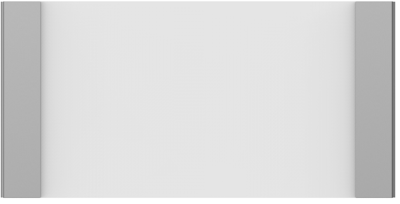

Power resistor, 4-2176398-2, TE Connectivity
The 4-2176398-2 is a high power resistor suitable for auto placement in volume and for most applications. This resistor should have a power rating based on continuous load operation at an ambient temperature of 70 ºC.
Features
- Suitable for auto placement
- Terminal finish matte sn over ni barrier
Technical specifications
| ohmic resistance | 680 kΩ | |
| Design | SMD 5025 | |
| Height | 1.1 mm | |
| Length | 5 mm | |
| Power | 2 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | thick film | |
| Temperature coefficient | ±100 ppm/°K |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
