2176322-6 | TE Connectivity
Resistor, metal film, SMD, 270 kΩ, 1 W, ±5 %, 2176322-6
Unit Price (€ / pc.)
0.2856 € *
Available: 0 pcs.
Available in 5 Days: 8,000 pcs.
Leadtime: 19 Weeks **
Total Price:
571.20 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.2856 €
20000 pcs.
0.2701 €
*incl. VAT plus shipping costs
**Subject to prior sale

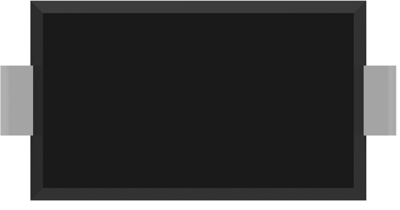

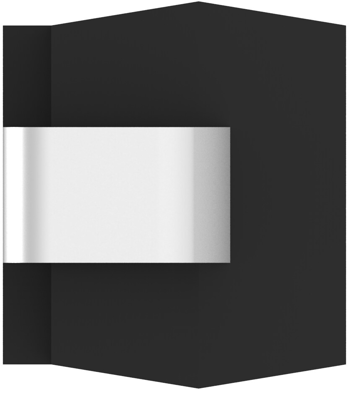

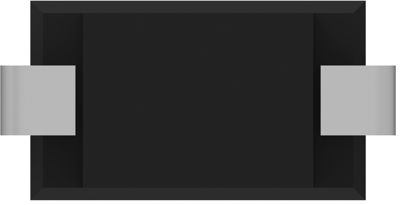

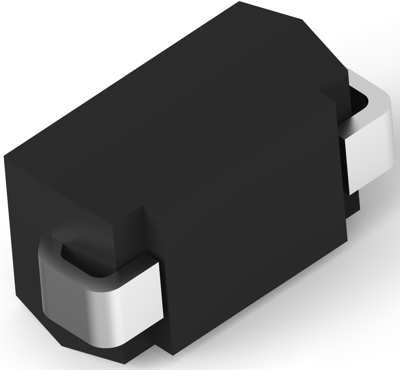

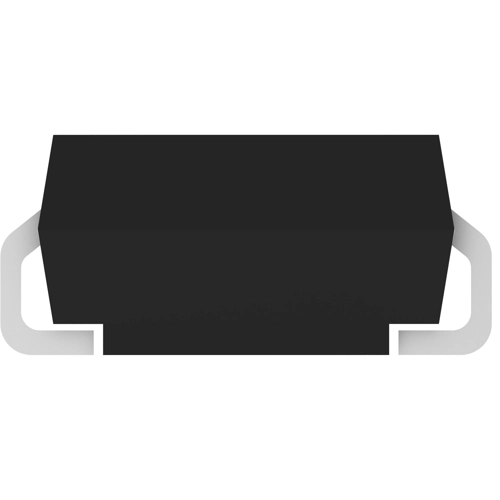

Resistor, 2176322-6, TE Connectivity
The 2176322-6 provides high stable performance against environmental conditions and overload. This product has flameproof UL94V0 molded package, and is resistant to sulfuration, heat and humidity.
Features
- High surge withstanding and pulse withstanding performance
- Excellent mechanical strength and electrical stability
Technical specifications
| Temperature coefficient | ±200 ppm/°K | |
| Technology | metal film | |
| Height | 3.55 mm | |
| Power | 1 W | |
| Length | 6.7 mm | |
| Design | SMD | |
| min. operating temperature | -65 °C | |
| Tolerance | ±5 % | |
| max. operating temperature | 200 °C | |
| ohmic resistance | 270 kΩ |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85332100 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
