1622820-4 | TE Connectivity

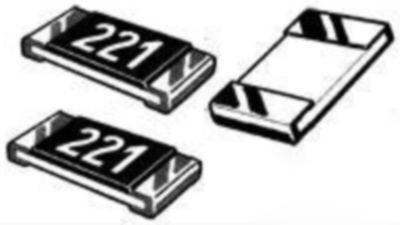

Resistor, thick film, SMD 2512 (6330), 10 Ω, 1 W, ±5 %, 1622820-4
Unit Price (€ / pc.)
0.1047 € *
Available in 5 Days: 8,000 pcs. - if ordered today
Total Price:
418.88 € *
Price list
Quantity
Price per unit*
4000 pcs.
0.1047 €
8000 pcs.
0.0916 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD Power Resistor, 1622820-4, TE Connectivity
The 1622820-4 is a low cost high power device, suitable for auto placement in volume, and for most applications, including high frequency operations, owing to the short lead structure.
Features
- Small size to power ratio
- Supplied on tape
- Value marked on resistor
- Low profile
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 10 Ω | |
| max. operating temperature | 125 °C | |
| Length | 6.4 mm | |
| min. operating temperature | -55 °C | |
| Height | 0.6 mm | |
| Technology | thick film | |
| Width | 3 mm | |
| Design | SMD 2512 (6330) | |
| Power | 1 W | |
| Temperature coefficient | ±200 ppm/K | |
| Tolerance | ±5 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 4,000 pieces |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
