KWS-10A-24 | TDK-Lambda

AC/DC converter, 85-265 VAC, 12 W, 24 V, KWS-10A-24

Order No.: 70C1140
EAN: 4099891342210
MPN:
KWS-10A-24
Series: KWS
TDK-Lambda
KWS-10A-24 TDK-Lambda AC/DC Converters

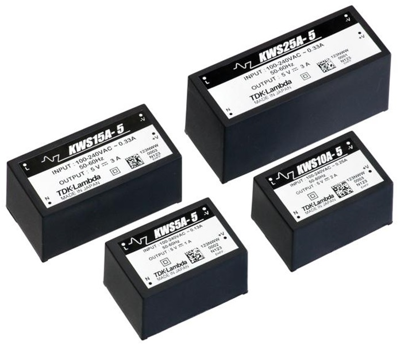

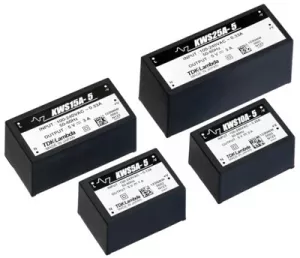

Image may differ
Unit Price (€ / pc.)
42.3164 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
42.32 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4 pcs.
42.3164 €

AC/DC Power Supply, KWS-10A-24, TDK-Lambda

Due to its wide operating temperature range from -10°C to +85°C (starting at -40°C), the KWS-A series of the 2nd generation is ideally suited for harsh environmental conditions in industrial environments. The encapsulated power supplies for board mounting do not require a protective earth connection and are available in 4 power classes: 5, 10, 15 and 25 watts. The no-load consumption of the power supplies is less than 0.5 Watt and has an efficiency value of up to 88%.

Features

  • Protection class II, no ground connection
  • Small footprint without the need for external components
  • Long life of the electrolytic capacitor
  • Power consumption without load less than 0.5 W
  • Improved efficiencies up to 88
  • Wide temperature range -40°C (start-up) to +85°C
Technical specifications
Output voltage DC 24 V
Output current 500 mA
Design PCB mounting
Width 21.5 mm
Input voltage AC 85-265 VAC
Height 25.4 mm
Length 38.1 mm
Power 12 W
efficiency 84 %
Logistics
Country of origin JP
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
