B72520T0110K062 | TDK (EPCOS)
Varistor, SMD 1206, VV 18 V, 200 A, 14 V (DC), 11 V (AC), ±10 %, 0.008 VA (AC), 0.5 J, B72520T0110K062
Unit Price (€ / pc.)
0.2606 € *
Available: 0 pcs.
Leadtime: On Request **

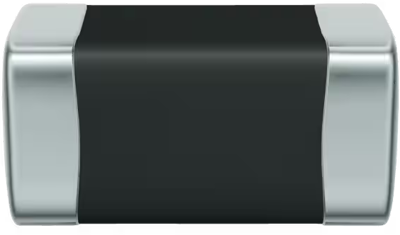

SMD metal oxide varistors (VDRs), type TDK/Epcos B725.
Chip package, molded, good soldering properties, low-inductance

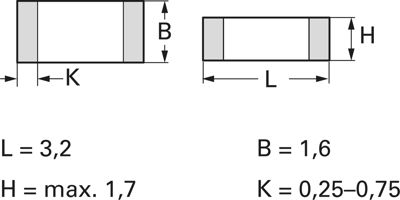

Size 1206, type B72520.
Technical specifications
| Rated voltage (DC) | 14 V | |
| Varistor Voltage Type | 18 V | |
| Energy absorption | 0.5 J | |
| Rated voltage (AC) | 11 V | |
| Design | SMD 1206 | |
| min. operating temperature | -55 °C | |
| Tolerance | ±10 % | |
| max. operating temperature | 125 °C | |
| max. Surge current, transient (8/20 µs) | 200 A | |
| Standard number | UL, IEC, CECC | |
| Power dissipation | 0.008 W |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85332900 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
