B72520T0040M062 | TDK (EPCOS)
Varistor, SMD 1206, VV 8 V, 150 A, 5.5 V (DC), 4 V (AC), ±20 %, 0.008 VA (AC), 0.3 J, B72520T0040M062
Unit Price (€ / pc.)
0.4879 € *
Available: 3,399 pcs.
Leadtime: On Request **
Total Price:
4.88 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4879 €
50 pcs.
0.3927 €
250 pcs.
0.3332 €
1000 pcs.
0.2856 €
2500 pcs.
0.2511 €
*incl. VAT plus shipping costs
**Subject to prior sale

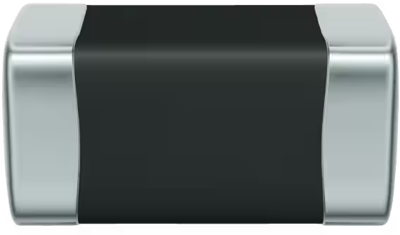

SMD metal oxide varistors (VDRs), type TDK/Epcos B72520T0040M062
Chip package, molded, good soldering properties, low-inductance, Size 1206
Technical specifications
| Rated voltage (DC) | 5.5 V | |
| Varistor Voltage Type | 8 V | |
| Energy absorption | 0.3 J | |
| Rated voltage (AC) | 4 V | |

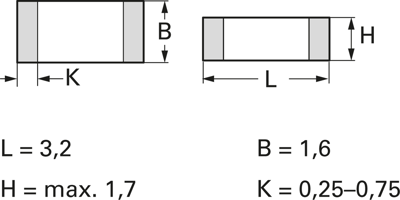

| Design | SMD 1206 | |
| min. operating temperature | -55 °C | |
| Tolerance | ±20 % | |
| max. operating temperature | 125 °C | |
| max. Surge current, transient (8/20 µs) | 150 A | |
| Standard number | UL, IEC, CECC | |
| Power dissipation | 0.008 W |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85332900 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
