B72510T0040M062 | TDK (EPCOS)
Varistor, SMD 0805, VV 8 V, 100 A, 5.5 V (DC), 4 V (AC), ±20 %, 0.005 VA (AC), 0.1 J, B72510T0040M062
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.5474 € *
Available: 2,369 pcs.
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5474 €
50 pcs.
0.4046 €
250 pcs.
0.3332 €
1000 pcs.
0.2856 €
2500 pcs.
0.2499 €
*incl. VAT plus shipping costs
Subject to prior sale

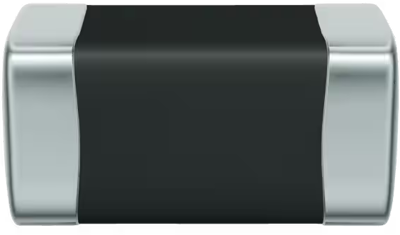

SMD metal oxide varistors (VDRs), type TDK/Epcos B725.
Chip package, molded, good soldering properties, low-inductance

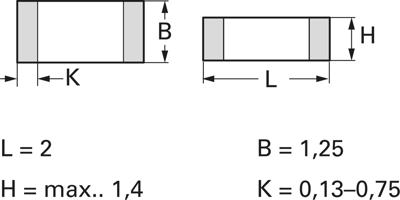

Size 0805, type B72510.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | SMD 0805 | |
| Varistor Voltage Type | 8 V | |
| max. Surge current, transient (8/20 µs) | 100 A | |
| Rated voltage (DC) | 5.5 V | |
| Rated voltage (AC) | 4 V | |
| Tolerance | ±20 % | |
| Power dissipation | 0.005 W | |
| Energy absorption | 0.1 J | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Standard number | UL, IEC, CECC |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85332900 |
| Country of origin | HR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
