B82720K2202N040 | TDK (EPCOS)

Power line choke, radial, 1.1 mH, 2 A, B82720K2202N040

Order No.: 73D9202
EAN: 4099889007374
MPN:
B82720K2202N040
B82720K2202N40
Series: B82720K

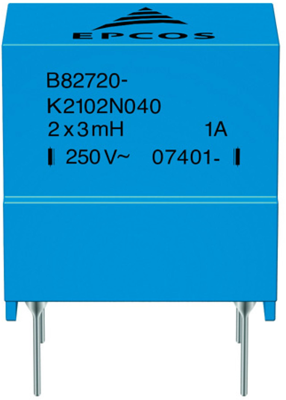

B82720K2202N040 TDK (EPCOS) Fixed Inductors Image 1

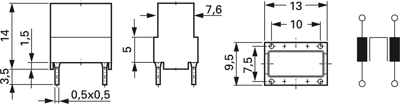

B82720K2202N040 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
1.7493 € *
Available: 599 pcs.
Total Price:
3.50 € *
Price list
Quantity
Price per unit*
2 pcs.
1.7493 €
25 pcs.
1.5470 €
150 pcs.
1.3923 €
500 pcs.
1.2733 €
1000 pcs.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale

Power line chokes, type TDK/Epcos B82720A.

Current-compensated ring core double choke for line applications

Vertical version, type B82720K.

Technical specifications
Filter Property Value
DC current 2 A
Saturation current 1.1 A
Width 9.5 mm
Height 14 mm
Length 13 mm
DC resistance 65 mΩ
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance -30/+50 %
Inductance 1.1 mH
Logistics
Property Value
Country of origin CN
Customs tariff number 85045000
Original Packaging Carton with 150 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
