B82720K2102N040 | TDK (EPCOS)

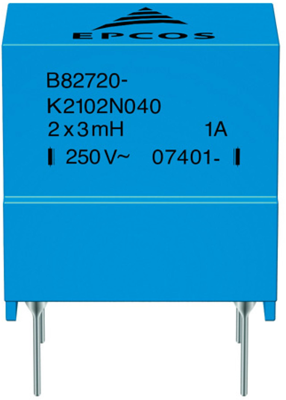

Power line choke, radial, 3 mH, 1 A, B82720K2102N040
Unit Price (€ / pc.)
2.2610 € *
Available: 333 pcs.
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
10 pcs.
2.0111 €
100 pcs.
1.8207 €
250 pcs.
1.6422 €
1000 pcs.
1.4994 €
*incl. VAT plus shipping costs
Subject to prior sale
Power line chokes, type TDK/Epcos B82720A.
Current-compensated ring core double choke for line applications
Vertical version, type B82720K.

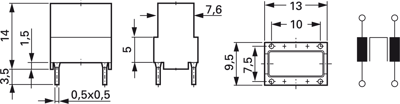

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 14 mm | |
| Version | power line choke | |
| Width | 9.5 mm | |
| Saturation current | 1 A | |
| DC resistance | 220 mΩ | |
| Inductance | 3 mH | |
| Design | radial | |
| Tolerance | -30/+50 % | |
| Length | 13 mm | |
| Measuring frequency | 10 kHz | |
| DC current | 1 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 150 pieces |
| Country of origin | CN |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| RoHS conform | Yes |
