B82144A2226J000 | TDK (EPCOS)

RF choke, axial, 22 mH, 40 mA, B82144A2226J000

Order No.: 74D5826
EAN: 4099889013771
MPN:
B82144A2226J000
B82144A2226J
Series: LBC
B82144A2226J000 TDK (EPCOS) Fixed Inductors

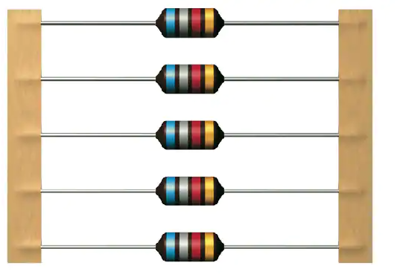

Image may differ
Unit Price (€ / pc.)
0.2499 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
749.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.2499 €

RF choke, B82144A2226J000, EPCOS

Features

  • Very wide inductance range
  • High rated current
  • Suitable for wave soldering
  • RoHS-compatible

Applications

  • RF blocking and filtering
  • Decoupling and interference suppression
  • For telecommunications, automotive electronics, energy-saving lamps, entertainment electronics
Technical specifications
Filter Property Value
Length 12 mm
DC current 40 mA
Inductance 22 mH
Quality Q Q 50
Measuring frequency 100 kHz
Design axial
DC resistance 120 Ω
Version RF choke
Tolerance ±5 %
Logistics
Property Value
Customs tariff number 85045000
Original Packaging Bulk with 1,500 pieces
Country of origin HU
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
