B82801B0724A060 | TDK (EPCOS)

Current measuring transformer, 1:60, 720 µH, 1.98 Ω, B82801B0724A060

Order No.: 66C726
EAN: 4099889048797
MPN:
B82801B0724A060
B82801B724A60
Series: B82801B
B82801B0724A060 TDK (EPCOS) Coupled Inductors

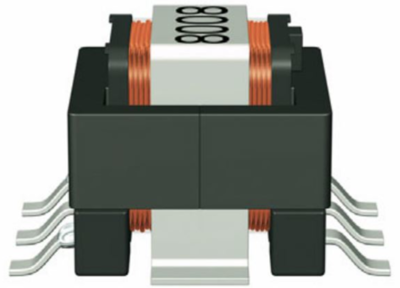

Image may differ
Unit Price (€ / pc.)
1.8921 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
1,702.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
900 pcs.
1.8921 €

SMD current sense transformers, type TDK/Epcos E 5.

Switching mode power supply transformer, with measurable currents of max. 20 A, feedback control, overload and load drop detection

Technical specifications
Filter Property Value
Product type current measuring transformer
Winding ratio 1:60
Inductance 720 µH
Design SMD
min. frequency 50 kHz
max. frequency 1 MHz
DC resistance 1.98 Ω
Length 7.11 mm
Width 8.13 mm
Height 5.08 mm
min. operating temperature -40 °C
max. operating temperature 125 °C
Logistics
Property Value
Country of origin CN
Customs tariff number 85043180
Original Packaging Reel with 900 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
