B82801B0305A125 | TDK (EPCOS)

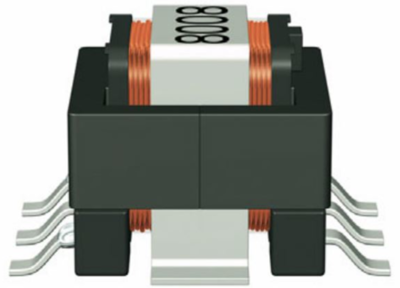

Current measuring transformer, 1:125, 3 mH, 6.5 Ω, B82801B0305A125
Unit Price (€ / pc.)
2.6418 € *
Available: 275 pcs.
Total Price:
5.28 € *
Price list
Quantity
Price per unit*
2 pcs.
2.6418 €
10 pcs.
2.3562 €
50 pcs.
2.1182 €
250 pcs.
1.9992 €
500 pcs.
1.8921 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD transformer, B82801B0305A125, EPCOS
Features
- Very low DC resistance
- Different turns ratios
- Small package
- Other pinning on request
- RoHS compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | current measuring transformer | |
| Winding ratio | 1:125 | |
| Inductance | 3 mH | |
| Design | SMD | |
| min. frequency | 50 kHz | |
| max. frequency | 1 MHz | |
| DC resistance | 6.5 Ω | |
| Length | 7.11 mm | |
| Width | 8.13 mm | |
| Height | 5.08 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 900 pieces |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
