B82801B0184A030 | TDK (EPCOS)

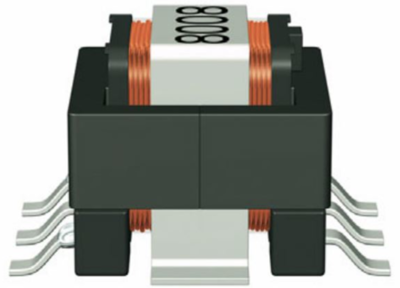

Current measuring transformer, 1:30, 180 µH, 870 Ω, B82801B0184A030
Unit Price (€ / pc.)
1.8921 € *
Standard delivery time from the manufacturer is: 26 Weeks
SMD current sense transformers, type TDK/Epcos E 5.
Switching mode power supply transformer, with measurable currents of max. 20 A, feedback control, overload and load drop detection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | current measuring transformer | |
| Winding ratio | 1:30 | |
| Inductance | 180 µH | |
| Design | SMD | |
| min. frequency | 50 kHz | |
| max. frequency | 1 MHz | |
| DC resistance | 870 Ω | |
| Length | 7.11 mm | |
| Width | 8.13 mm | |
| Height | 5.08 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 900 pieces |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
