32.0345P0001 | Stäubli Electrical Connectors

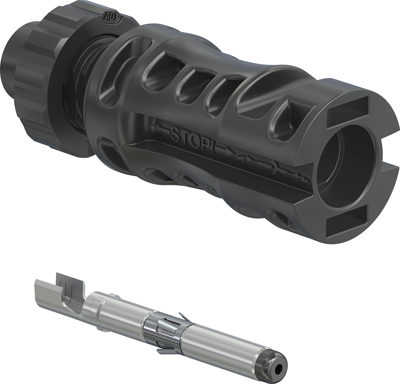

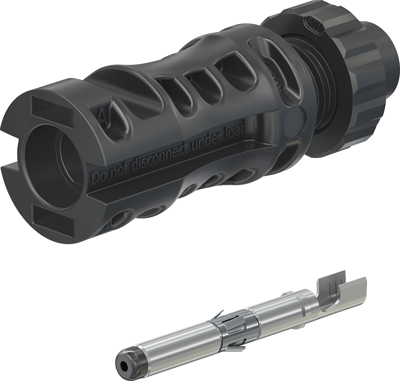

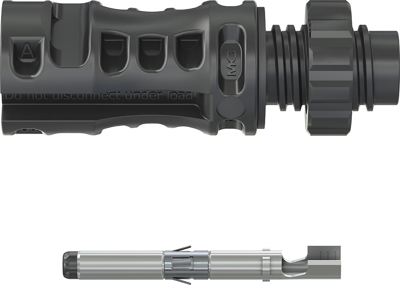

MC4-Evo 2 surface mount plug, 2.5 mm², 1.5 kV, 32 A, 32.0345P0001
Unit Price (€ / pc.)
3.6771 € *
Available: 5 pcs.
Total Price:
3.68 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6771 €
10 pcs.
3.3439 €
50 pcs.
3.1178 €
100 pcs.
2.8917 €
500 pcs.
2.6775 €
*incl. VAT plus shipping costs
Subject to prior sale
Mounting plug, 32.0287P0001, Stäubli Electrical Connectors
This assembly is made directly via the threads or in the perforated plate with the plastic nut. Thanks to the D-shape thread the connection is secured against twisting. This degree of protection (IP68) guarantees highest connection safety, fast and clean connection with preassembled flat seal. Plug compatible with the original MC4 plug connector family.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 2.5 mm² | |
| diameter | 4 mm | |
| Rated current | 32 A | |
| Contact connection | crimp terminal open | |
| Rated voltage | 1.5 kV | |
| Version | MC4-Evo 2 surface mount plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
