MFB40H24A | SEPA
DC axial fan, 24 V, 40 x 40 x 10 mm, 11.3 m³/h, 27 dB, ball bearing, SEPA MFB40H24A
Unit Price (€ / pc.)
21.6699 € *
Available: 5 pcs.
Total Price:
21.67 € *
Price list
Quantity
Price per unit*
1 pcs.
21.6699 €
10 pcs.
19.5160 €
50 pcs.
17.1598 €
100 pcs.
15.1130 €
*incl. VAT plus shipping costs
Subject to prior sale

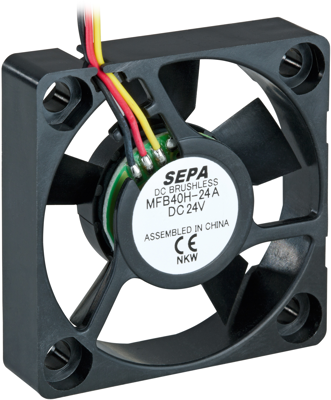

DC Axial fan, MFB40H24A, SEPA
The MFB40H24A is a high-tech mini fan used for industrial and automotive purposes and has a remarkable conveying capacity despite its small dimensions.
Features
- It is permanently protected electrically against reverse polarity blocking and thermal overloading
- High resistance to shock and vibration
- Extremely robust
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 10 mm | |
| Sound pressure level | 27 db | |
| Height | 40 mm | |
| Type of bearing | ball bearing | |
| Width | 40 mm | |
| Volume flow | 11.3 m³/h | |
| Rated voltage | 24 V | |
| Version | DC axial fan | |
| speed | 5800 1/min |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
