MFB40H05 | SEPA

DC axial fan, 5 V, 40 x 40 x 10 mm, 11 m³/h, 24 dB, ball bearing, SEPA MFB40H05

Order No.: 82B232
EAN: 2050002734333
MPN:
MFB40H05
Series: MFB40
SEPA
MFB40H05 SEPA Axial Fans

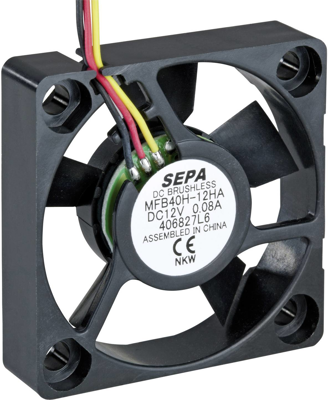

Image may differ
Unit Price (€ / pc.)
16.4101 € *
Available: 17 pcs.
Leadtime: 1 Week **
Total Price:
16.41 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4101 €
10 pcs.
15.2677 €
25 pcs.
14.0420 €
50 pcs.
12.7806 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC Axial fan, MFB40H05, SEPA

The MFB40H05 is a high-tech mini fan used for industrial and automotive purposes and has a remarkable conveying capacity despite its small dimensions.

Features

  • It is permanently protected electrically against reverse polarity blocking and thermal overloading
  • Suitable for battery-powered devices
  • Extremely robust
  • Material housing: plastic
Technical specifications
Version DC axial fan
Width 40 mm
speed 5800 1/min
Height 40 mm
Type of bearing ball bearing
Rated voltage 5 V
Sound pressure level 24 db
Depth 10 mm
Volume flow 11 m³/h
Logistics
Country of origin CN
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
