DC axial fan, 12 V, 40 x 40 x 10 mm, 13.3 m³/h, 33 dB, Ball bearing, SEPA, MFB40H12HA

default S
default L
Order No.:  82B4683
Manufacturer:  SEPA
Manufacturer SKU MFB40H12HA
Manufacturer series:  MFB40
EAN: 4099889479546
about the green icons

Active

Total price
( 22.2292 € * / pcs.)
22.23 €
Available: 18 pcs.
Quantity
Price per unit*
1 pcs.
22.2292 €
10 pcs.
20.0158 €
50 pcs.
17.6120 €
100 pcs.
15.4819 €
*incl. VAT plus shipping costs
Show 8 variants
Please send price/quantity requests to info@buerklin.com
Description
Technical specifications
Logistics
Compliance
Download
Variations
Accessory
Description

Product by SEPA at Bürklin Elektronik

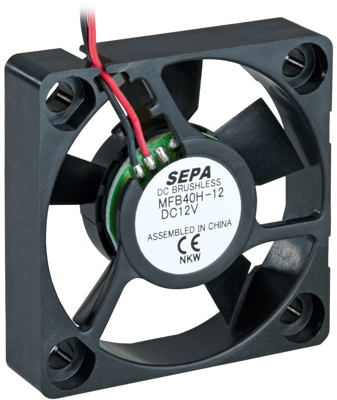

DC Axial fan, MFB40H12HA, SEPA

The MFB40H12HA is a high-tech mini fan used for industrial and automotive purposes and has a remarkable conveying capacity despite its small dimensions.

Features

  • It is permanently protected electrically against reverse polarity blocking and thermal overloading
  • High resistance to shock and vibration
  • Extremely robust
  • Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
Version DC axial fan
Width 40 mm
speed 7100 1/s
Height 40 mm
Type of bearing Ball bearing
Rated voltage 12 V
Sound pressure level 33 db
Depth 10 mm
Volume flow 798 m³/s
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Accessory
Protective metal grille, FG, Protective metal grille, 32 mm
Protective metal grille, FG, Protective metal grille, 32 mm
Order No.:
 82B230
Manufacturer:
 SEPA
Manufacturer SKU
 FG40
5 pcs.
0.9044 €
10 pcs.
0.7973 €
50 pcs.
0.7021 €
4.52 € *
Available: 997 pcs.
Protective plastic grille, FG, Protective plastic grille, 40 mm
Protective plastic grille, FG, Protective plastic grille, 40 mm
Order No.:
 82B271
Manufacturer:
 SEPA
Manufacturer SKU
 FG40K
5 pcs.
1.3923 €
10 pcs.
1.2495 €
50 pcs.
1.0948 €
6.96 € *
Available: 27 pcs.
EMC shielding panel for fans, 40 x 40 mm, FSB40-02
EMC shielding panel for fans, 40 x 40 mm, FSB40-02
Order No.:
 82B2712
Manufacturer:
 SEPA
Manufacturer SKU
 FSB40-02
2 pcs.
2.5704 €
10 pcs.
2.2967 €
50 pcs.
2.0349 €
5.14 € *
Available: 53 pcs.
Dust protection grille, LFG, Dust protection grille, 46.4 mm
Dust protection grille, LFG, Dust protection grille, 46.4 mm
Order No.:
 82B2700
Manufacturer:
 SEPA
Manufacturer SKU
 LFG40-45
1 pcs.
5.8905 €
10 pcs.
5.3074 €
50 pcs.
4.6648 €
100 pcs.
3.9746 €
5.89 € *
Available: 63 pcs.
Next delivery: 40 pcs. on 2023-04-11
EMV protective grille, EMVG, EMV protective grille, 42 mm
EMV protective grille, EMVG, EMV protective grille, 42 mm
Order No.:
 90B1570
Manufacturer:
 SEPA
Manufacturer SKU
 EMVG40-SET
2 pcs.
3.6414 €
10 pcs.
3.2725 €
50 pcs.
2.8798 €
7.28 € *
Available: 75 pcs.
EMC / DUST FILTER METAL 30PPI
EMC / DUST FILTER METAL 30PPI
Order No.:
 82B4669
Manufacturer:
 SEPA
Manufacturer SKU
 FM40
5 pcs.
1.4875 €
10 pcs.
1.3447 €
50 pcs.
1.1781 €
7.44 € *
Available: 100 pcs.
*incl. VAT plus shipping costs
Variations
Depth
Unit
speed
Version
Width
Unit
Sound pressure level
Height
Unit
Volume flow
Rated voltage
Unit
1 item in 8 variations
Item description
Price list
Total
Depth
speed
Version
Width
Sound pressure level
Height
Volume flow
Rated voltage
DC axial fan, 24 V, 40 x 40 x 10 mm, 11.3 m³/h, 24 dB, Ball bearing, SEPA, MFB40H24
DC axial fan, 24 V, 40 x 40 x 10 mm, 11.3 m³/h, 24 dB, Ball bearing, SEPA, MFB40H24
Order No.:
 82B242
Manufacturer:
 SEPA
Manufacturer SKU
 MFB40H24
1 pcs.
21.4081 €
10 pcs.
19.2780 €
50 pcs.
16.9575 €
100 pcs.
14.4109 €
21.41 € *
Available: 392 pcs.
10 mm
5800 1/s
DC axial fan
40 mm
24 db
40 mm
678 m³/s
24 V
DC axial fan, 12 V, 40 x 40 x 10 mm, 11.1 m³/h, 21 dB, Ball bearing, SEPA, MFB40H12
DC axial fan, 12 V, 40 x 40 x 10 mm, 11.1 m³/h, 21 dB, Ball bearing, SEPA, MFB40H12
Order No.:
 82B236
Manufacturer:
 SEPA
Manufacturer SKU
 MFB40H12
1 pcs.
18.7782 €
10 pcs.
16.8980 €
50 pcs.
14.8750 €
100 pcs.
12.6378 €
18.78 € *
Available: 108 pcs.
10 mm
6100 1/s
DC axial fan
40 mm
21 db
40 mm
666 m³/s
12 V
DC axial fan, 5 V, 40 x 40 x 10 mm, 11 m³/h, 24 dB, Ball bearing, SEPA, MFB40H05
DC axial fan, 5 V, 40 x 40 x 10 mm, 11 m³/h, 24 dB, Ball bearing, SEPA, MFB40H05
Order No.:
 82B232
Manufacturer:
 SEPA
Manufacturer SKU
 MFB40H05
1 pcs.
19.9325 €
10 pcs.
17.9333 €
50 pcs.
15.7794 €
100 pcs.
13.3994 €
19.93 € *
Available: 20 pcs.
10 mm
5800 1/s
DC axial fan
40 mm
24 db
40 mm
660 m³/s
5 V
DC axial fan, 12 V, 40 x 40 x 10 mm, 13.2 m³/h, 32 dB, Ball bearing, SEPA, MFB40H12H
DC axial fan, 12 V, 40 x 40 x 10 mm, 13.2 m³/h, 32 dB, Ball bearing, SEPA, MFB40H12H
Order No.:
 82B239
Manufacturer:
 SEPA
Manufacturer SKU
 MFB40H12H
1 pcs.
21.5747 €
10 pcs.
19.4208 €
50 pcs.
17.0765 €
100 pcs.
14.5180 €
21.57 € *
Available: 37 pcs.
10 mm
7000 1/s
DC axial fan
40 mm
32 db
40 mm
792 m³/s
12 V
DC axial fan, 12 V, 40 x 40 x 10 mm, 11.1 m³/h, 21 dB, Ball bearing, SEPA, MFB40H12A
DC axial fan, 12 V, 40 x 40 x 10 mm, 11.1 m³/h, 21 dB, Ball bearing, SEPA, MFB40H12A
Order No.:
 82B238
Manufacturer:
 SEPA
Manufacturer SKU
 MFB40H12A
1 pcs.
18.2903 €
10 pcs.
16.4458 €
50 pcs.
14.4704 €
100 pcs.
12.3046 €
18.29 € *
Available: 102 pcs.
10 mm
5500 1/s
DC axial fan
40 mm
21 db
40 mm
666 m³/s
12 V
DC axial fan, 12 V, 40 x 40 x 10 mm, 13.3 m³/h, 33 dB, Ball bearing, SEPA, MFB40H12HA
DC axial fan, 12 V, 40 x 40 x 10 mm, 13.3 m³/h, 33 dB, Ball bearing, SEPA, MFB40H12HA
Order No.:
 82B4683
Manufacturer:
 SEPA
Manufacturer SKU
 MFB40H12HA
1 pcs.
22.2292 €
10 pcs.
20.0158 €
50 pcs.
17.6120 €
100 pcs.
15.4819 €
22.23 € *
Available: 18 pcs.
10 mm
7100 1/s
DC axial fan
40 mm
33 db
40 mm
798 m³/s
12 V
DC axial fan, 24 V, 40 x 40 x 10 mm, 11.3 m³/h, 27 dB, Ball bearing, SEPA, MFB40H24A
DC axial fan, 24 V, 40 x 40 x 10 mm, 11.3 m³/h, 27 dB, Ball bearing, SEPA, MFB40H24A
Order No.:
 82B243
Manufacturer:
 SEPA
Manufacturer SKU
 MFB40H24A
1 pcs.
21.0392 €
10 pcs.
18.9448 €
50 pcs.
16.6600 €
100 pcs.
14.6608 €
21.04 € *
Available: 42 pcs.
10 mm
5800 1/s
DC axial fan
40 mm
27 db
40 mm
678 m³/s
24 V
DC axial fan, 5 V, 40 x 40 x 10 mm, 11 m³/h, 24 dB, Ball bearing, SEPA, MFB40H05A
DC axial fan, 5 V, 40 x 40 x 10 mm, 11 m³/h, 24 dB, Ball bearing, SEPA, MFB40H05A
Order No.:
 82B234
Manufacturer:
 SEPA
Manufacturer SKU
 MFB40H05A
1 pcs.
20.9202 €
10 pcs.
18.8258 €
50 pcs.
16.5529 €
100 pcs.
14.0896 €
20.92 € *
Available: 7 pcs.
10 mm
5800 1/s
DC axial fan
40 mm
24 db
40 mm
660 m³/s
5 V
