MFB40H12H | SEPA
DC axial fan, 12 V, 40 x 40 x 10 mm, 13.2 m³/h, 32 dB, ball bearing, SEPA MFB40H12H
Unit Price (€ / pc.)
17.0646 € *
Available: 24 pcs.
Next delivery: 200 pcs. on 2025-12-05
Total Price:
17.06 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0646 €
10 pcs.
15.7794 €
25 pcs.
14.5061 €
50 pcs.
13.6493 €
100 pcs.
12.8044 €
*incl. VAT plus shipping costs
Subject to prior sale

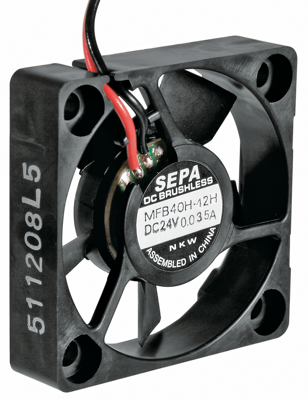

DC Axial fan, MFB40H12H, SEPA
The MFB40H12H is a high-tech mini fan used for industrial and automotive purposes and has a remarkable conveying capacity despite its small dimensions.
Features
- It is permanently protected electrically against reverse polarity blocking and thermal overloading
- High resistance to shock and vibration
- Extremely robust
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Volume flow | 13.2 m³/h | |
| Sound pressure level | 32 db | |
| Width | 40 mm | |
| Rated voltage | 12 V | |
| Depth | 10 mm | |
| Type of bearing | ball bearing | |
| speed | 7000 1/min | |
| Version | DC axial fan | |
| Height | 40 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
