MFB40H05A | SEPA

DC axial fan, 5 V, 40 x 40 x 10 mm, 11 m³/h, 24 dB, ball bearing, SEPA MFB40H05A

Order No.: 82B234
EAN: 4099889478068
MPN:
MFB40H05A
Series: MFB40

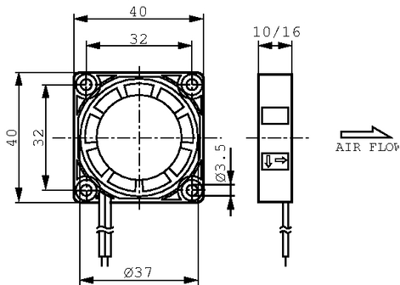

MFB40H05A SEPA Axial Fans Image 1

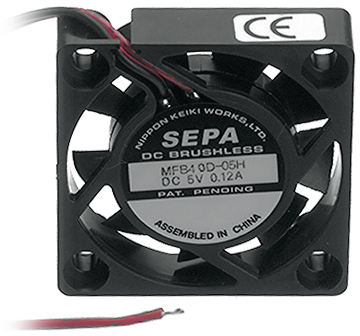

MFB40H05A SEPA Axial Fans Image 2
Image may differ
Unit Price (€ / pc.)
21.5509 € *
Available: 8 pcs.
Total Price:
21.55 € *
Price list
Quantity
Price per unit*
1 pcs.
21.5509 €
10 pcs.
19.3970 €
50 pcs.
17.0527 €
100 pcs.
14.5180 €
*incl. VAT plus shipping costs
Subject to prior sale

DC Axial fan, MFB40H05A, SEPA

The MFB40H05A is a high-tech mini fan used for industrial and automotive purposes and has a remarkable conveying capacity despite its small dimensions.

Features

  • It is permanently protected electrically against reverse polarity blocking and thermal overloading
  • Suitable for battery-powered devices
  • Extremely robust
  • Material housing: plastic
Technical specifications
Filter Property Value
Rated voltage 5 V
speed 5800 1/min
Width 40 mm
Volume flow 11 m³/h
Sound pressure level 24 db
Version DC axial fan
Height 40 mm
Depth 10 mm
Type of bearing ball bearing
Logistics
Property Value
Country of origin CN
Customs tariff number 84145925
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
