8020.5023 | SCHURTER
Microfuse 6.3 x 32 mm, 16 A, T, 400 V (DC), 400 V (AC), 1.5 kA breaking capacity, 8020.5023
Unit Price (€ / pc.)
0.9401 € *
Available: 950 pcs.
Leadtime: 9 Weeks **
Total Price:
9.40 € *
Price list
Quantity
Price per unit*
10 pcs.
0.9401 €
50 pcs.
0.8330 €
250 pcs.
0.7140 €
1000 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale

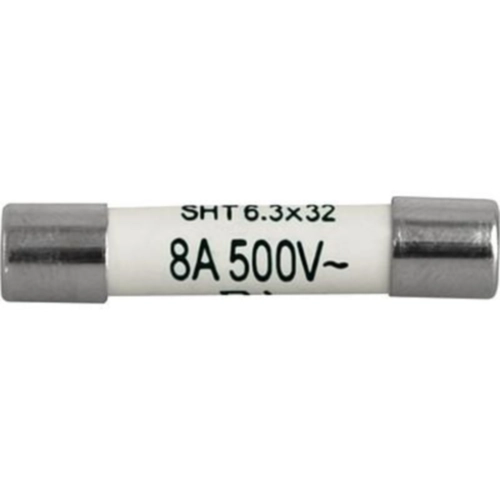

Micro fuse, 8020.5023, SCHURTER
The 8020.5023 is a time-lag cartridge fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material ceramic tube
- Material endcaps brass nickel-plated
- Material filler sand
- Low resistance
Applications
- Single-phase high current applications up to 30 A
- DC applications
- Frequency converter
- Power electronics
- Commercial cooking appliances
- Photovoltaic
Technical specifications
| Rated voltage (DC) | 400 V | |
| Enclosure | ceramic tube | |
| Rated current | 16 A | |
| diameter | 6.35 mm | |
| Tripping characteristics | T | |
| Length | 31.8 mm | |
| Breaking capacity | 1.5 kA | |
| Rated voltage (AC) | 400 V | |
| Version | microfuse | |
| Design | 6.3 x 32 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85361050 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
