0001.2507 | SCHURTER

Name: Microfuses 5 x 20 mm, 2 A, T, 300 V (DC), 250 V (AC), 1.5 kA breaking capacity, 0001.2507
Brand: SCHURTER
SKU: 43G312
Price: 0.35 EUR
Availability: InStock

Microfuses 5 x 20 mm, 2 A, T, 300 V (DC), 250 V (AC), 1.5 kA breaking capacity, 0001.2507

Order No.: 43G312

EAN: 4099889088090

MPN:

0001.2507

Series: SPT 5x20

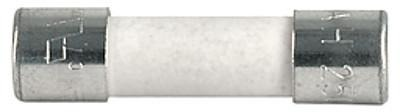

Image may differ

Key Specification:

Version microfuses

Design 5 x 20 mm

Enclosure ceramic tube

Rated current 2 A

Tripping characteristics T

Show 16 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.3451 € *

Available: 1,700 pcs.

Leadtime: 8 Weeks **

Total Price:

3.45 € *

Price list

Quantity

Price per unit*

10 pcs.

0.3451 €

50 pcs.

0.3058 €

100 pcs.

0.2582 €

500 pcs.

0.2344 €

1000 pcs.

0.2011 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Micro fuse, 0001.2507,SCHURTER

The 0001.2507 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.

Features

Material ceramic tube
Material endcaps copper alloy nickel-plated
High breaking capacity
Cartridge model

Applications

Primary protection in equipment
Power supply adapter
SMPS (Switching Mode Power Supply) for TV's and DVD's

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85361010
Original Packaging	Carton with 10 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
