0001.2501 | SCHURTER

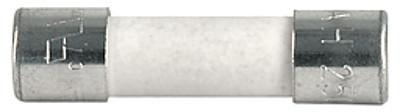

Microfuse 5 x 20 mm, 500 mA, T, 300 V (DC), 250 V (AC), 1.5 kA breaking capacity, 0001.2501
Unit Price (€ / pc.)
0.7021 € *
Available: 1,060 pcs.
Total Price:
7.02 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7021 €
50 pcs.
0.5950 €
100 pcs.
0.4998 €
500 pcs.
0.4641 €
1000 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale
Micro fuse, 0001.2501,SCHURTER
The 0001.2501 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material ceramic tube
- Material endcaps copper alloy nickel-plated
- High breaking capacity
- Cartridge model
Applications
- Primary protection in equipment
- Power supply adapter
- SMPS (Switching Mode Power Supply) for TV's and DVD's
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 500 mA | |
| Design | 5 x 20 mm | |
| Version | microfuse | |
| Rated voltage (AC) | 250 V | |
| Enclosure | ceramic tube | |
| Tripping characteristics | T | |
| diameter | 5.2 mm | |
| Rated voltage (DC) | 300 V | |
| Breaking capacity | 1.5 kA | |
| Length | 20 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
