SCHURTER

DD12.6123.111 | SCHURTER

IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 1.6 W, 800 µH, faston plug 6.3 mm, DD12.6123.111

default S
default L
Total price
(25.83 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
20 pcs.
25.83 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

IEC appliance inlet, DD12.6123.111, SCHURTER

The DD12.6123.111 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Various mounting options
  • Attractive flat design
  • Switch for highest inrush current
  • V-Lock cord retaining
  • Ultra-compact design
  • Ideal for application with high transient loads
  • Suitable for use in medical equipment
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Version IEC plug C14
Rated Voltage 250 VAC
Inductance per line 0.8 mH
integrated switch Yes
Capacity X|Y X2 100 nF, Y2 2.2 nF
Power 1.6 W
max. frequency 0.00006 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 6 A
Show similar products (0)
Logistics
Country of origin SK
Customs tariff number 85363010
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item with 3 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
Power

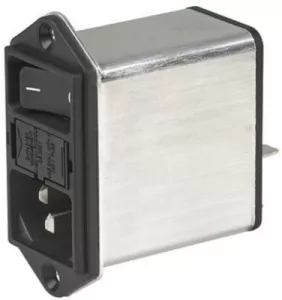

IEC plug C14, 50 to 60 Hz, 8 A, 250 VAC, 1.6 W, 600 µH, faston plug 6.3 mm, DD12.8321.111
Order No.:
 59P8768
Manufacturer:
 SCHURTER
Manufacturer SKU
 DD12.8321.111
20 pcs.
26.12 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C14
250 VAC
X2 100 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
8 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 1.6 W, 800 µH, faston plug 6.3 mm, DD12.6123.111
Order No.:
 59P8764
Manufacturer:
 SCHURTER
Manufacturer SKU
 DD12.6123.111
20 pcs.
25.83 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 2 A, 250 VAC, 1.6 W, 4 mH, faston plug 6.3 mm, DD12.2123.111
Order No.:
 59P8755
Manufacturer:
 SCHURTER
Manufacturer SKU
 DD12.2123.111
20 pcs.
23.90 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC plug C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
2 A
0.00005 MHz
1.6 W
