4304.4005 | SCHURTER
IEC plug C14, 50 to 60 Hz, 10 A, 250 VAC, 1.6 W, 300 µH, faston plug 6.3 mm, 4304.4005
Unit Price (€ / pc.)
47.0050 € *
Available: 28 pcs.
Total Price:
47.01 € *
Price list
Quantity
Price per unit*
1 pcs.
47.0050 €
10 pcs.
41.3644 €
20 pcs.
40.2458 €
40 pcs.
39.1153 €
160 pcs.
36.8662 €
*incl. VAT plus shipping costs
Subject to prior sale

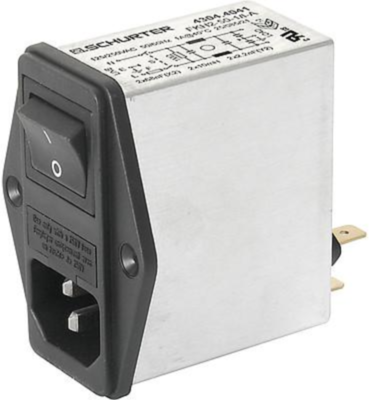

IEC appliance inlet, 4304.4005, SCHURTER
The 4304.4005 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Compact design with optimal shielding
- Plug removal necessary for fuse-link replacement
- With EMC-shield
- Line Switch 2-pole
- Suitable for use in medical equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 1 MΩ | |
| max. operating temperature | 85 °C | |
| Rated current | 10 A | |
| Inductance per line | 300 µH | |
| min. operating temperature | -25 °C | |
| integrated switch | Yes | |
| With fuse | Yes | |
| min. frequency | 50 Hz | |
| Power | 1.6 W | |
| Connection | faston plug 6.3 mm | |
| Version | IEC plug C14 | |
| Rated Voltage | 250 VAC | |
| Capacity X|Y | X2 68 nF, Y2 2.2 nF | |
| max. frequency | 60 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
