4304.4001 | SCHURTER

IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 1.6 W, 10 mH, faston plug 6.3 mm, 4304.4001

default S
default L
Total price
(28.86 € * / pcs.)
28.86 €
Available: 100 pcs.
Quantity
Price per unit*
1 pcs.
28.86 €
3 pcs.
27.62 €
5 pcs.
26.48 €
10 pcs.
25.44 €
*incl. VAT plus shipping costs
Show 5 variants
Description

Product by SCHURTER at Bürklin Elektronik

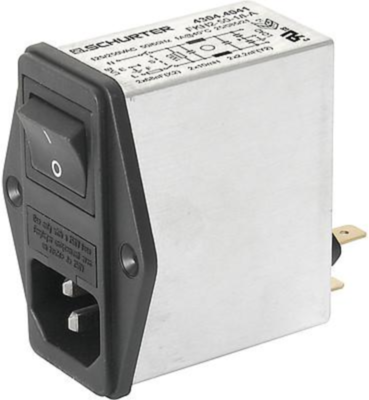

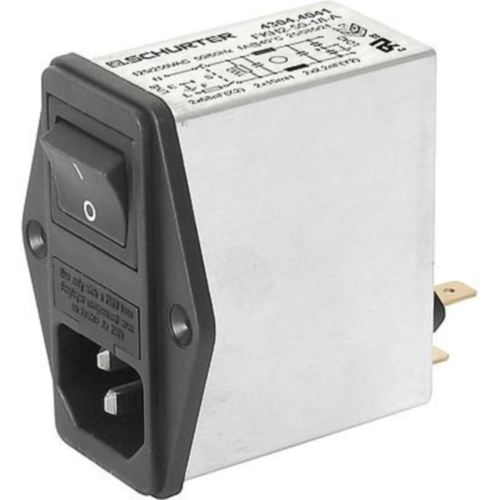

IEC appliance inlet, 4304.4001, SCHURTER

The 4304.4001 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Compact design with optimal shielding
  • Plug removal necessary for fuse-link replacement
  • With EMC-shield
  • Line Switch 2-pole
  • Suitable for use in medical equipment
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Version IEC plug C14
Rated Voltage 250 VAC
Inductance per line 10 mH
integrated switch Yes
Capacity X|Y X2 68 nF, Y2 2.2 nF
Power 1.6 W
max. frequency 0.00006 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 1 A
Show similar products (0)
Logistics
Country of origin SK
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 10 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 5 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
Power
IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 1.6 W, 800 µH, faston plug 6.3 mm, 4304.4004
Order No.:
 59P5655
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4004
1 pcs.
31.24 €
3 pcs.
29.90 €
5 pcs.
28.67 €
10 pcs.
27.54 €
0.00 € *
Next delivery: 20 pcs. on 2023-07-28
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 10 A, 250 VAC, 1.6 W, 300 µH, faston plug 6.3 mm, 4304.4005
Order No.:
 59P5656
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4005
1 pcs.
31.24 €
3 pcs.
29.90 €
5 pcs.
28.67 €
10 pcs.
27.54 €
0.00 € *
Next delivery: 26 pcs. on 2023-02-10
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.6 W, 1.5 mH, faston plug 6.3 mm, 4304.4003
Order No.:
 59P5654
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4003
1 pcs.
31.24 €
3 pcs.
29.90 €
5 pcs.
28.67 €
10 pcs.
27.54 €
0.00 € *
Next delivery: 20 pcs. on 2023-02-03
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
4 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 1.6 W, 10 mH, faston plug 6.3 mm, 4304.4001
Order No.:
 59P5652
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4001
1 pcs.
28.86 €
3 pcs.
27.62 €
5 pcs.
26.48 €
10 pcs.
25.44 €
28.86 € *
Available: 100 pcs.
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 3 A, 250 VAC, 1.6 W, 4 mH, faston plug 6.3 mm, 4304.4002
Order No.:
 59P5653
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4002
1 pcs.
31.24 €
3 pcs.
29.90 €
5 pcs.
28.67 €
10 pcs.
27.54 €
31.24 € *
Available: 20 pcs.
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
3 A
0.00005 MHz
1.6 W
