SCHURTER

4304.4003 | SCHURTER

IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.6 W, 1.5 mH, faston plug 6.3 mm, 4304.4003

default S
default L
Total price
(31.24 € * / pcs.)
0.00 €
Next delivery: 20 pcs. on 2023-02-03
Quantity
Price per unit*
1 pcs.
31.24 €
3 pcs.
29.90 €
5 pcs.
28.67 €
10 pcs.
27.54 €
*incl. VAT plus shipping costs
Description

Product by SCHURTER at Bürklin Elektronik

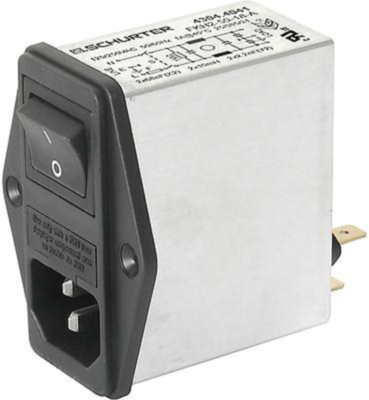

IEC appliance inlet, 4304.4003, SCHURTER

The 4304.4003 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Compact design with optimal shielding
  • Plug removal necessary for fuse-link replacement
  • With EMC-shield
  • Line Switch 2-pole
  • Suitable for use in medical equipment
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Version IEC plug C14
Rated Voltage 250 VAC
Inductance per line 1.5 mH
integrated switch Yes
Capacity X|Y X2 68 nF, Y2 2.2 nF
Power 1.6 W
max. frequency 0.00006 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 4 A
Show similar products (0)
Logistics
Country of origin SK
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 10 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 5 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
Power
IEC plug C14, 50 to 60 Hz, 10 A, 250 VAC, 1.6 W, 300 µH, faston plug 6.3 mm, 4304.4005
Order No.:
 59P5656
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4005
1 pcs.
31.24 €
3 pcs.
29.90 €
5 pcs.
28.67 €
10 pcs.
27.54 €
0.00 € *
Next delivery: 26 pcs. on 2023-02-10
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.6 W, 1.5 mH, faston plug 6.3 mm, 4304.4003
Order No.:
 59P5654
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4003
1 pcs.
31.24 €
3 pcs.
29.90 €
5 pcs.
28.67 €
10 pcs.
27.54 €
0.00 € *
Next delivery: 20 pcs. on 2023-02-03
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
4 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 1.6 W, 800 µH, faston plug 6.3 mm, 4304.4004
Order No.:
 59P5655
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4004
1 pcs.
31.24 €
3 pcs.
29.90 €
5 pcs.
28.67 €
10 pcs.
27.54 €
0.00 € *
Next delivery: 20 pcs. on 2023-07-28
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 1.6 W, 10 mH, faston plug 6.3 mm, 4304.4001
Order No.:
 59P5652
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4001
1 pcs.
28.86 €
3 pcs.
27.62 €
5 pcs.
26.48 €
10 pcs.
25.44 €
28.86 € *
Available: 100 pcs.
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
1.6 W
IEC plug C14, 50 to 60 Hz, 3 A, 250 VAC, 1.6 W, 4 mH, faston plug 6.3 mm, 4304.4002
Order No.:
 59P5653
Manufacturer:
 SCHURTER
Manufacturer SKU
 4304.4002
1 pcs.
31.24 €
3 pcs.
29.90 €
5 pcs.
28.67 €
10 pcs.
27.54 €
31.24 € *
Available: 20 pcs.
1000000 Ω
IEC plug C14
250 VAC
X2 68 nF, Y2 2.2 nF
0.00006 MHz
faston plug 6.3 mm
-25 °C
85 °C
3 A
0.00005 MHz
1.6 W
*incl. VAT plus shipping costs
