3-108-854 | SCHURTER
IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 12 mH, faston plug 6.3 mm, 3-108-854
Unit Price (€ / pc.)
38.0681 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

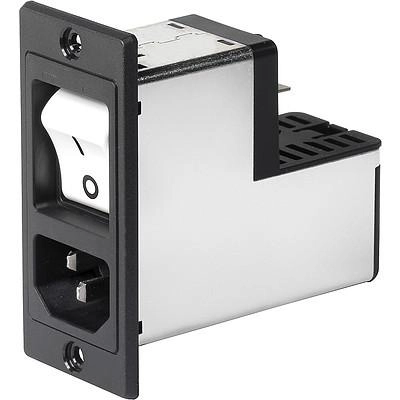

IEC appliance inlet, 3-108-854, SCHURTER
The 3-108-854 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Rocker switch black, non-illuminated
- V-Lock cord retaining
Technical specifications
| Connection | faston plug 6.3 mm | |
| Version | IEC plug C14 | |
| Rated Voltage | 250 VAC | |
| Inductance per line | 12 mH | |
| integrated switch | Yes | |
| Capacity X|Y | X 220 nF, Y 2.2 nF | |
| max. frequency | 60 Hz | |
| max. operating temperature | 60 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| With fuse | No | |
| Rated current | 1 A |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
