DKFP-H22H-082P | SCHURTER

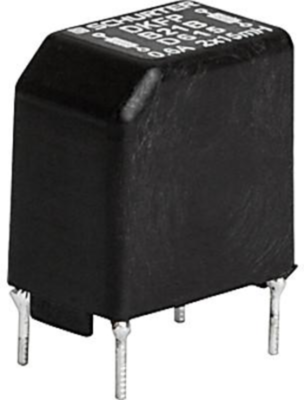

Suppressor choke, 2.7 mH, 8 A, DKFP-H22H-082P
Unit Price (€ / pc.)
4.0698 € *
Available: 0 pcs.
Leadtime: 40 Weeks **
Fixed inductor, DKFP-H22H-082P, SCHURTER
The DKFP-H22H-082P is a current compensated choke. It is used for limiting currents in electrical lines, for intermediate storage of energy, for impedance matching or for filtering.
Features
- Current compensated choke
- THT-terminals
- High inductance and compact dimensions
- Multiple pin configurations
Applications
- Attenuation of common mode interferences
- Designed for 230/400 VAC applications
- DC drives and stepper motor controls
- Switching power supplies
Technical specifications
| Ausführung | Entstördrossel | |
| Breite | 42 mm | |
| Gleichstrom | 8 A | |
| Gleichstromwiderstand | 22 mΩ | |
| Höhe | 25 mm | |
| Induktivität | 2.7 mH | |
| Länge | 43 mm | |
| Toleranz | -30/+50 % |
Download
Logistics
| Ursprungsland | LK |
| Zolltarifnummer | 85389091 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
