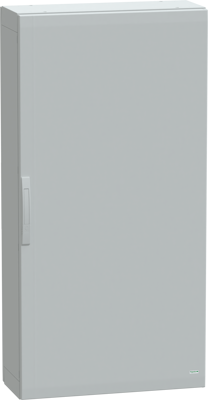

Floor standing polyester enclosure, NSYPLA1573G, Schneider Electric
This PLA version of the Thalassa is a multi-purpose, floor-standing enclosure that is suitable for various applications. It features a sealed top and bottom part, assembled with side parts, and has nominal dimensions of 1500 mm in height, 750 mm in width, and 320 mm in depth. The enclosure is made of polyester reinforced with fiberglass, providing strength and resistance to harsh environments, including outdoor and industrial settings. The enclosure comes in grey (RAL 7035) and is comprised of two side parts, one plain front door, and one rear panel. The front door can be opened up to 120° from either the right or left side, and is secured with a four-point lock and a 5 mm double-bar insert.
The rear panel and door can be removed for maintenance purposes, the enclosure is certified by DNV Marine, Veritas, and UL/cUL listed, and offers robust protection against various hazards, including fire, impact, dust, and water. It can withstand fire up to 960 °C in accordance with the IEC 62208 standard and has an IK10 rating (IEC 62262), indicating high resistance to impacts it is rated IP65 (IEC 60529), providing complete protection against dust and water additionally. The enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions. It is UL certified and can be stored in ambient air temperatures ranging from -35 °C to 90 °C without affecting its performance.
