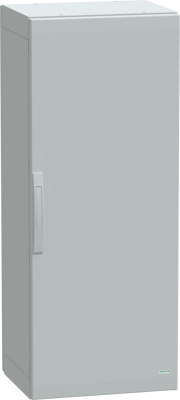

Floor standing polyester enclosure, NSYPLA1254G, Schneider Electric
This PLA version of the Thalassa range is a versatile, floor-standing enclosure that is suitable for various applications. The enclosure has nominal dimensions of 1250 mm in height, 500 mm in width, and 420 mm in depth. It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings. The enclosure is available in grey (RAL 7035). It consists of two side parts, one plain front door, and one rear panel. The door can be opened up to 120° from either the right or left side, and features a four-point lock with a 5 mm double-bar insert.
The door and rear panel are removable for maintenance purposes, the enclosure offers robust protection against various hazards, including fire, impacts, dust, and water. It can withstand fire up to 960 °C in accordance with the IEC 62208 standard. The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts it is rated IP65 (IEC 60529), offering complete protection against dust and water additionally. The enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions. It is UL/cUL listed and DNV Marine certified, and can be stored in ambient air temperatures ranging from -35 °C to 90 °C without affecting its performance.
