TPRSS065 | Schneider Electric
Direct starter, 30 kW, 65 A, 24 V (DC), TPRSS065
Unit Price (€ / pc.)
387.7020 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
387.70 € *
Price list
Quantity
Price per unit*
1 pcs.
387.7020 €
3 pcs.
377.9321 €
*incl. VAT plus shipping costs
Subject to prior sale

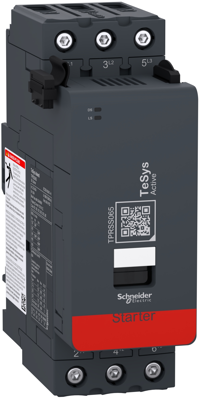

SIL motor starter, TPRSS065, Schneider Electric
TeSys island direct SIL starter, 3 poles, 65 A/690 V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 65 A and motors up to 30kW@400V / 40hp@480V. It can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 3.35-65 A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 24 V | |
| Degree of protection (IP) | IP20 | |
| Power | 30 kW | |
| max. operating temperature | 60 °C | |
| min. operating temperature | -10 °C | |
| Version | direct starter | |
| Rated current | 65 A | |
| Standard number | IEC 60947-4-1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | boron trioxide, lead monoxide, lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
