TPRSS009 | Schneider Electric

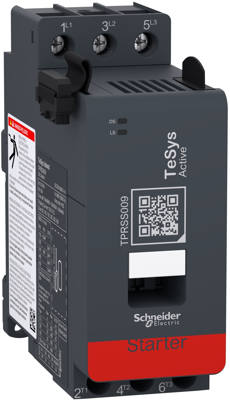

Direct starter, 4 kW, 9 A, 24 V (DC), TPRSS009
Unit Price (€ / pc.)
141.7171 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
141.72 € *
Price list
Quantity
Price per unit*
1 pcs.
141.7171 €
3 pcs.
137.7901 €
5 pcs.
134.0892 €
*incl. VAT plus shipping costs
Subject to prior sale
SIL motor starter, TPRSS009, Schneider Electric
TeSys island direct SIL starter, 3 poles, 9 A/690 V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 9 A and motors up to 4kW@400V / 5hp@480V. It can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 0.18-9 A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP20 | |
| min. operating temperature | -10 °C | |
| Rated current | 9 A | |
| max. operating temperature | 60 °C | |
| Version | direct starter | |
| Power | 4 kW | |
| Standard number | IEC 60947-4-1 | |
| Rated voltage (DC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | boron trioxide, lead monoxide, lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
