NSYCVF850M115PF | Schneider Electric

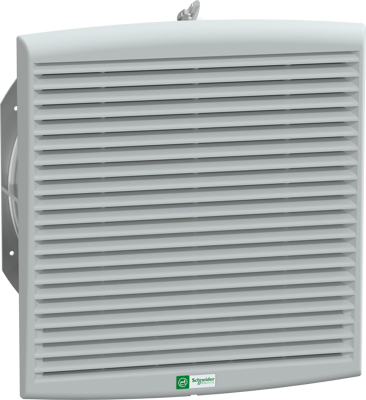

Fan, 115 V, 316 x 336 x 162 mm, 850 m³/h, 78 dB, ball bearing, Schneider Electric NSYCVF850M115PF

Order No.: 04P0402
EAN: 3606480151354
MPN:
NSYCVF850M115PF
Series: Climasys CV
NSYCVF850M115PF Schneider Electric Panel-Mount Fans
Image may differ
Unit Price (€ / pc.)
260.7766 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
260.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
260.7766 €

Fan, NSYCVF850M115PF, Schneider Electric

ClimaSys forced ventilation system, rated IP54, with a capacity of 850 m³/h, operating at 115V, includes an outlet grille and a G2 filter.

Technical specifications
Filter Property Value
Width 316 mm
Volume flow 850 m³/h
Degree of protection (IP) IP54
Type of bearing ball bearing
Rated voltage 115 V
Height 336 mm
Sound pressure level 78 db
Depth 162 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 84145925
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Sustainable Yes
SVHC free No
Date of RoHS guidelines 3/31/15
