NSYTBS191210H | Schneider Electric

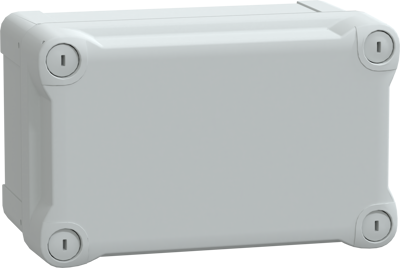

ABS enclosure, (L x W x H) 192 x 121 x 105 mm, light gray (RAL 7035), IP66, NSYTBS191210H

Order No.: 02P2734
EAN: 3606480165290
MPN:
NSYTBS191210H
Series: PanelSet TBS
NSYTBS191210H Schneider Electric General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
23.5263 € *
Available: 4 pcs.
Total Price:
23.53 € *
Price list
Quantity
Price per unit*
1 pcs.
23.5263 €
2 pcs.
22.5029 €
4 pcs.
21.2772 €
6 pcs.
20.1705 €
*incl. VAT plus shipping costs
Subject to prior sale

ABS enclosure, NSYTBS191210H, Schneider Electric

Thalassa TBS industrial ABS box with opaque cover H40. Interior is 175 x 105 x 100 mm. Exterior is 192 x 121 x 105 mm. Wall mounted enclosure, high plain cover. Outside sealed. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4 x ), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40 °C)/(-25 to 60 °C).

Technical specifications
Filter Property Value
Height 105 mm
Colour light gray
Degree of protection (IP) IP66
Material ABS
Width 121 mm
RAL number 7035
Length 192 mm
Logistics
Property Value
Customs tariff number 85381000
Country of origin HU
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
