LV847249 | Schneider Electric

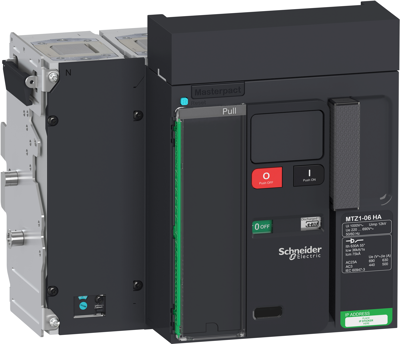

Load-break switch, Push actuator, 4 pole, 630 A, 1000 V, (W x H x D) 358 x 322 x 291 mm, Drawout, LV847249
Unit Price (€ / pc.)
3,691.9869 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3,691.99 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3,691.9869 €
Circuit breaker, LV847249, Schneider Electric
Masterpact MTZ1 630A HA Icm=60kA/690V 4P switch-disconnector withdrawable . Open circuit breaker Masterpact MTZ1 630A HA Icm=60kA/690V 4P switch-disconnector withdrawable without cassette
Technical specifications
| Actuator | Push actuator | |
| Width | 358 mm | |
| Permanent current | 630 A | |
| Height | 322 mm | |
| Isolation voltage | 1000 V | |
| Assembly | Drawout | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP30 | |
| Depth | 291 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
