LV847161 | Schneider Electric
Load-break switch, Push actuator, 3 pole, 800 A, 1000 V, (W x H x D) 276 x 301 x 209 mm, fixed mounting, LV847161
Unit Price (€ / pc.)
2,248.9691 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,248.97 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,248.9691 €

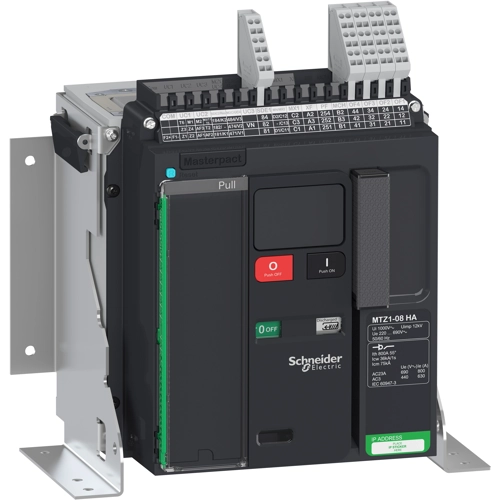

Circuit breaker, LV847161, Schneider Electric
Masterpact MTZ1 800A HA Icm=60kA/690V 3P switch-disconnector fixed . Open circuit breaker Masterpact MTZ1 800A HA Icm=60kA/690V 3P switch-disconnector fixed installation
Technical specifications
| Actuator | Push actuator | |
| Width | 276 mm | |
| Permanent current | 800 A | |
| Height | 301 mm | |
| Isolation voltage | 1000 V | |
| Assembly | fixed mounting | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP30 | |
| Depth | 209 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
