LV847166 | Schneider Electric
Load-break switch, push actuator, 4 pole, 1250 A, 1000 V, (W x H x D) 346 x 301 x 209 mm, fixed mounting, LV847166
Unit Price (€ / pc.)
4,580.0006 € *
Standard delivery time from the manufacturer is: 1 Week

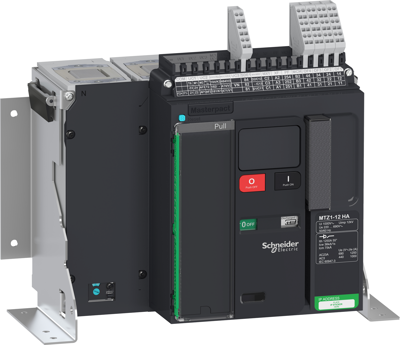

Circuit breaker, LV847166, Schneider Electric
Open circuit breaker Masterpact MTZ1 1250 A HA Icm=60 kA/690 V, 4P, switch-disconnector, fixed installation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 209 mm | |
| Isolation voltage | 1000 V | |
| Product type | load-break switch | |
| Height | 301 mm | |
| Permanent current | 1250 A | |
| Assembly | fixed mounting | |
| Width | 346 mm | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP30 | |
| Actuator | push actuator |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85362090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
