Basic frame, 47151, Schneider Electric

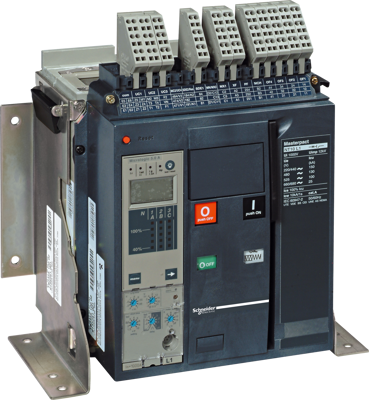

This is a basic frame for 3 poles Masterpact NT16H2 fixed circuit breaker. Masterpact NT is a comprehensive range of air circuit breakers designed to protect electrical systems from damage caused by overloads, short circuits and equipment ground faults. The breaking capacity (Icu) is 50 kA rms at 440 VAC 50/60 Hz. The rated current is 1600 A. This basic frame is compatible with any type of Micrologic control unit which has to be ordered separately. With Micrologic control unit, Masterpact NT contributes to safety and energy efficiency. It can be equipped with a variety of optional functions and accessories. The dimensions are 276mm (W) x 301mm (H) x 196mm (D). It ensures compliance with international standards (IEC 60947), UL489, CCC, EAC and marine specifications.
