47141 | Schneider Electric

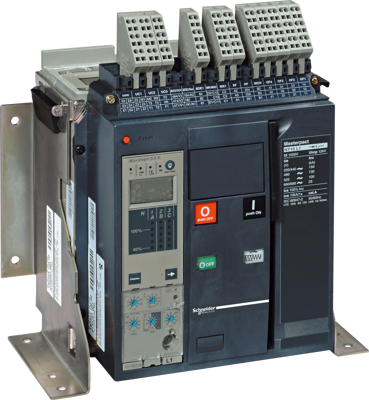

Basic frame, Push actuator, 3 pole, 1250 A, 1000 V, (W x H x D) 276 x 301 x 196 mm, fixed mounting, 47141
Unit Price (€ / pc.)
3,117.0622 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3,117.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3,117.0622 €
Base frame, 47141, Schneider Electric
Base frame, Masterpact NT12H2, 1250A, 3p, fixed . Base frame, Masterpact NT12H2, 1250A, 3p, fixed. Product series: Masterpact NT - Product or component type: Base frame - Short designation of the device: Masterpact NT12 - Circuit-breaker designation: Masterpact NT12 - Network
Technical specifications
| Actuator | Push actuator | |
| Width | 276 mm | |
| Permanent current | 1250 A | |
| Height | 301 mm | |
| Isolation voltage | 1000 V | |
| Assembly | fixed mounting | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP30 | |
| Depth | 196 mm |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
