PKF32W735 | Schneider Electric

CEE wall socket, 5 pole, 32 A/380-415 V, red, IP67, PKF32W735

Order No.: 04P5378
EAN: 4099889876840
MPN:
PKF32W735
Series: PratiKa

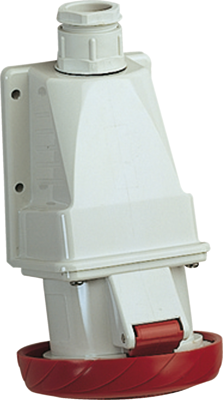

PKF32W735 Schneider Electric CEE Connectors Image 1

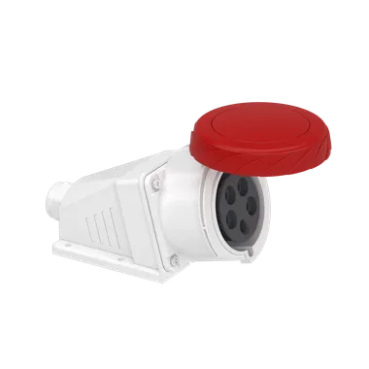

PKF32W735 Schneider Electric CEE Connectors Image 2
Image may differ
Unit Price (€ / pc.)
105.1722 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
105.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
105.1722 €

Pratika industrial socket, PKF32W735, Schneider Electric

This Pratika industrial socket with captive screws connection is angled wall mounted. It has 3P+N+E poles, rated current is 32A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 106 mm x (H) 130 mm. The degree of protection is IP67 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5 mm² to 10 mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Technical specifications
Pin number 5 pole
Connection screw connection
Degree of protection (IP) IP67
Version wall socket
Nominal power 32 A/380-415 V
Colour red
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
SVHC free No
Substance description Lead
