PKF32W723 | Schneider Electric
CEE wall socket, 3 pole, 32 A/200-250 V, blue, IP67, PKF32W723
Unit Price (€ / pc.)
98.3178 € *
Standard delivery time from the manufacturer is: 1 Week

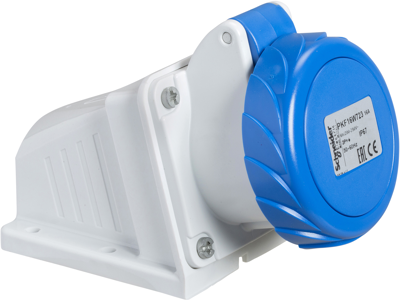

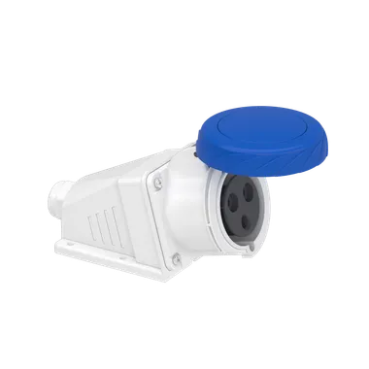

Pratika industrial socket, PKF32W723, Schneider Electric
This Pratika industrial socket with captive screws connection is angled wall mounted. It has 2P+E poles, rated current is 32A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 106 mm x (H) 191 mm. The degree of protection is IP67 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5 mm² to 10 mm². The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Technical specifications
| Pin number | 3 pole | |
| Connection | screw connection | |
| Degree of protection (IP) | IP67 | |
| Version | wall socket | |
| Nominal power | 32 A/200-250 V | |
| Colour | blue |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | No |
| Substance description | Lead |
